Posted on 19th Nov 2024
Variable Frequency Drives (VFDs) are essential components in modern industrial automation, providing precise control of motor speed and torque. VFDs allow for energy-efficient operation and can improve the performance of machinery by adjusting motor speeds to meet varying load demands. Proper programming of a VFD ensures optimal performance, reliability, and energy savings.
This article provides a step-by-step guide to VFD programming, from understanding the basics to implementing more advanced settings.
Table of Contents:
What is a VFD?
Understanding VFD Parameters
Basic Steps for Programming a VFD
Advanced VFD Settings
Troubleshooting VFD Programming
Conclusion

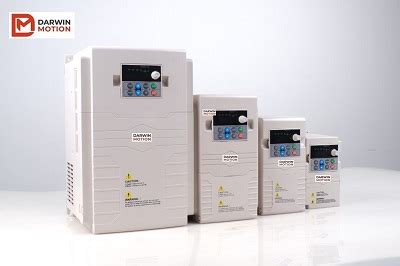

1. What is a VFD?
A Variable Frequency Drive (VFD) is an electronic device that controls the speed and torque of an electric motor by adjusting the frequency of the power supplied to the motor. It converts incoming AC power to DC power and then back to variable AC power at the desired frequency and voltage. VFDs are widely used in applications such as fans, pumps, conveyors, and HVAC systems, where adjusting motor speed based on load requirements is beneficial.
2. Understanding VFD Parameters
Before diving into programming, it’s essential to familiarize yourself with key parameters that you’ll encounter while setting up a VFD:
Frequency (Hz): Determines the speed of the motor. The relationship between motor speed (RPM) and frequency is linear. Increasing the frequency increases the motor speed.
Voltage (V): The voltage supplied to the motor. The VFD adjusts the output voltage to maintain the correct ratio with the frequency for proper motor operation.
Acceleration and Deceleration Time: The time it takes for the motor to reach full speed (acceleration) or come to a stop (deceleration).
Motor Rated Parameters: These include the rated voltage, current, frequency, and speed of the motor. The VFD uses these to ensure safe and efficient motor operation.
Torque Control: In some applications, torque control is critical, and VFDs can regulate motor torque based on load.
3. Basic Steps for Programming a VFD
Step 1: Install the VFD
Before programming the VFD, ensure that the unit is properly installed, connected to the motor, and wired to the power source. Follow the manufacturer’s installation instructions and ensure the motor parameters are correctly matched with the VFD specifications.
Step 2: Power Up the VFD
After the VFD is installed, power up the system. On the display panel, you will typically see a basic interface that provides access to the programming menu.
Step 3: Set Motor Parameters
Motor Voltage, Current, and Frequency: Input the motor’s rated voltage, current, and frequency into the VFD. This is crucial for the correct operation of the motor and protection of the system.
Motor Speed: Set the motor’s base speed, usually provided in RPM or Hz. The default base speed is typically set at the rated frequency of the motor (e.g., 60 Hz for a 1800 RPM motor).
Step 4: Set Acceleration and Deceleration Time
Acceleration Time: Set the time it takes for the motor to reach full speed from standstill. Typical values range from 2 to 10 seconds, but this can vary based on the application.
Deceleration Time: Set the time it takes for the motor to stop from full speed. This is important in applications where the motor needs to stop quickly, such as conveyors.
Step 5: Set Frequency Range
Minimum and Maximum Frequency: Define the range of frequencies within which the motor will operate. The minimum frequency is usually set at 0 Hz for the motor to start from rest, while the maximum frequency depends on the motor’s capabilities.
Step 6: Set Control Mode
VFDs typically offer several control modes, such as:
V/f Control (Volts per Hertz): The most common mode, where the voltage is varied proportionally with the frequency to maintain a constant V/f ratio. This is suitable for simple applications like fans and pumps.
Vector Control: Provides more precise control of motor torque and speed, suitable for high-performance applications requiring tight control.
Sensorless Vector Control: Similar to vector control but without the need for external sensors, making it cost-effective for most applications.
Select the appropriate control mode based on the requirements of your application.
Step 7: Set Control Inputs and Outputs
The VFD can be controlled through various inputs such as:
Start/Stop Input: Set the input for starting and stopping the motor (typically a digital input).
Speed Control Input: This could be a potentiometer, analog input, or communication protocol that allows the user to adjust speed.
Output settings allow the VFD to send signals to other devices, such as alarms, status indicators, or other controllers.
Step 8: Save and Exit Programming Mode
Once all the necessary parameters are entered, save your settings. Typically, this is done by pressing the Enter or Save button on the VFD's interface. Then, exit the programming mode and return to the normal operating mode.
4. Advanced VFD Settings
Once the basic settings are configured, you can explore advanced features based on your specific application needs:
PID Control: Some VFDs include built-in PID (Proportional-Integral-Derivative) control for maintaining a constant output, such as regulating flow, pressure, or temperature.
Communication Protocols: Many VFDs support communication protocols like Modbus, Profibus, or Ethernet/IP for integration with PLCs or higher-level control systems.
Energy Savings Mode: Advanced VFDs can automatically adjust motor speed and torque to maximize energy efficiency based on real-time load conditions.
Overload Protection: Set overload protection parameters to ensure the motor is not damaged by excessive current or heat.
5. Troubleshooting VFD Programming
While programming a VFD is generally straightforward, you may encounter issues during setup. Here are some common troubleshooting steps:
Motor Doesn’t Start: Check the wiring, ensure the start signal is correctly configured, and verify that the motor’s rated parameters are correctly entered.
Overcurrent or Overvoltage Alarm: If the VFD trips or shows an overcurrent or overvoltage alarm, double-check the motor and VFD ratings, and verify that the acceleration and deceleration times are appropriate.
Erratic Speed Control: If the motor speed is unstable, ensure that the control input (such as a potentiometer or PLC signal) is correctly wired and calibrated.
Refer to the VFD's manual for detailed troubleshooting steps and error codes specific to your unit.
6. Conclusion
Proper Darwin Motion VFD programming is key to achieving optimal performance, energy efficiency, and longevity of motors in industrial applications. By understanding the essential parameters and following a systematic approach, you can easily set up a VFD for various applications. For advanced settings, always consult the manufacturer's manual and adjust parameters based on the specific needs of your application. Regular maintenance and periodic recalibration can further enhance the performance and lifespan of both the VFD and the motor.
With this step-by-step guide, you should now have a solid foundation for programming VFDs in your automation systems, whether you are just starting or looking to fine-tune existing setups.
